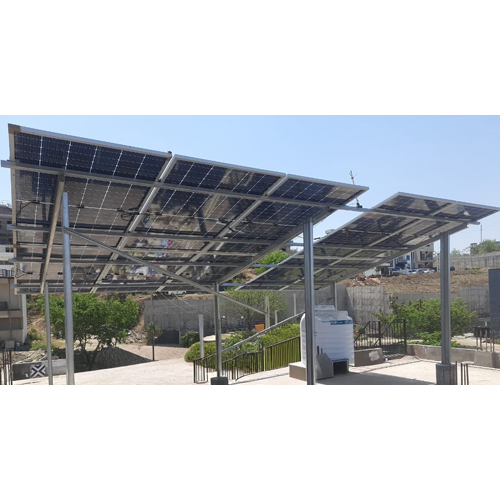

3 KW Solar Plant

Price 220000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

3 KW Solar Plant Specification

Product Type
Solar Power Plant

Material
Polycrystalline Silicon

Number of Cells
As per system design

Operating Temperature
-40C to +85C

Max Voltage
37.5 V

Max System Voltage
1000 VDC

Panel Efficiency
17.30%

Cable Length
1200 mm

Number Of Diodes
3

Maximum Snow Load
5400 Pa

Size
Standard

Dimension (L*W*H)
1968 x 990 x 40 mm

Weight
23 kg

Color
Blue and Black

Cell Type
Monocrystalline/Polycrystalline Silicon

Open Circuit Voltage (Voc)
45.3 V

Junction Box
IP67 Rated, Weatherproof

Application
Commercial & Industrial Use

Glass Thickness
3.2 mm Low Iron Toughened Glass

Connector Type
MC4 Compatible

Maximum Power Current (Imp)
8.60 A

Frame
Anodized Aluminium Alloy

Rated Power
320 330 W

Short Circuit Current (Isc)
9.15 A

3 KW Solar Plant Trade Information

Minimum Order Quantity
1 Set

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Sets Per Month

Delivery Time
10 Days

About 3 KW Solar Plant

3 kW Solar Power Plant Technical Specification

1. System Overview

System Capacity: 3 kW (3000 Watts)

Type: On-Grid (Grid-Tied) / Off-Grid / Hybrid (as per requirement)

Application: Residential homes, small offices, shops

Average Daily Generation: 1215 units/day (depending on sunlight)

Annual Generation: ~4,5005,000 kWh

2. Solar PV Modules

Type: Monocrystalline / Polycrystalline / Mono PERC

Capacity per Panel: 400550 W

No. of Panels: 6 to 8 panels (depending on wattage)

Efficiency: 18% 22%

Operating Voltage (Vmp): ~3045 V

Operating Current (Imp): ~1013 A

Frame: Anodized Aluminum

Glass: Toughened low-iron tempered glass

Warranty: 25 years performance warranty

3. Solar Inverter

Type: Grid-Tied / Hybrid / Off-Grid

Capacity: 3 kW

Input Voltage Range: 100V 550V DC

Output Voltage: 230V AC, 50 Hz

Efficiency: 97%

MPPT: Single / Dual MPPT

Protection: Overload, short circuit, over-voltage, anti-islanding

Display: LCD / LED / WiFi monitoring (optional)

4. Mounting Structure

Material: Hot Dip Galvanized Iron (GI) / Aluminum

Type: Fixed Tilt / Adjustable Tilt

Wind Load Resistance: Up to 150 km/h

Tilt Angle: 1530 (based on location)

Installation Type: Rooftop / Ground Mounted

5. DC & AC Cabling

DC Cable: UV-resistant copper cable (46 sq.mm)

AC Cable: Copper cable (610 sq.mm)

Protection: FRLS (Fire Retardant Low Smoke)

Connectors: MC4 compatible

6. Protection & Safety

DCDB (DC Distribution Box): With SPD & MCB

ACDB (AC Distribution Box): With MCB/MCCB

Earthing: Proper grounding (23 earthing points)

Lightning Arrester: Optional but recommended

Surge Protection Device (SPD): Yes

7. Battery (For Off-Grid / Hybrid Only)

Type: Lead Acid / Lithium-ion

Capacity: 35 kWh (depending on backup requirement)

Voltage: 48V system typically

Backup Time: 48 hours (based on load)

8. Net Metering (For On-Grid System)

Bi-directional meter

Export excess power to grid

Required approval from local DISCOM

9. Space Requirement

Area Required: ~250300 sq. ft.

Shadow-free rooftop recommended

10. Performance & Efficiency

System Efficiency: ~75%85%

Degradation: ~0.5% per year

Payback Period: 35 years (with subsidy)

11. Standards & Certifications

IEC 61215 / IEC 61730 (Modules)

IEC 62109 (Inverter)

MNRE Approved Components (India)

12. Warranty

Solar Panels: 25 years

Inverter: 510 years

Structure: 510 years

Installation: 12 years

Access formidable energy savings with our Solar Plant, offering formidable power rated at 320-330 W. Harness sublime performance via a Laureate blend of Monocrystalline and Polycrystalline silicon cells, backed by a weatherproof IP67 junction box and robust MC4-compatible connectors. Procure instant savings and long-term reliability, thanks to high panel efficiency (17.30%), maximum system voltage of 1000 VDC, and an anodized aluminium alloy frame. Designed for commercial and industrial use, this solar panel endures extreme weather (-40C to +85C), boasting a snow load of 5400 Pa and 3.2 mm toughened low iron glass for ultimate protection.

Outstanding Features and Competitive Advantages

Our solar plant offers a splendid array of extra features, including an IP67-rated, weatherproof junction box, and toughened 3.2 mm low iron glass, making it formidable against adverse weather. Suitable for diverse applications such as commercial and industrial sites, it provides efficient power generation while optimizing available space. The laureate efficiency ensures lower maintenance needs and a longer lifespan, giving you a sublime edge over market alternatives. MC4 compatibility and anodized frames further enhance durability and installation flexibility.

Sample Accessibility and Packaging Assurance

Sample solar panels are available to help you evaluate performance before making a bulk purchase. Our sample policy is tailored to ensure value: samples are offered at the list price, frequently at the lowest price point in the market. Packaging is meticulously managed, ensuring safe transit and preserving market value. Each unit is securely packed to prevent damage, delivered to any location across India, and backed by a satisfaction guarantee from our seasoned team.

FAQ's of Solar Plant:

Q: How do I access and install the Solar Plant for commercial use?

A: You can easily access our solar plants by contacting our sales team or authorized suppliers across India. Installation is straightforward with the provided MC4-compatible connectors, and we offer comprehensive support for commercial and industrial site setup.

Q: What are the primary benefits of using Monocrystalline/Polycrystalline silicon in the panels?

A: Both Monocrystalline and Polycrystalline silicon cells offer high efficiency, durability, and reliability. These materials achieve formidable power output and excellent performance even in challenging weather conditions.

Q: When can I expect to take delivery after I procure a sample or place a bulk order?

A: Once your order is confirmed, samples ship swiftly-often within days. Full-scale procurement follows a streamlined process with competitive lead times, optimized to ensure prompt delivery anywhere in India.

Q: Where can these solar panels be applied most effectively?

A: The solar panels are best suited for commercial and industrial use-ideal for offices, factories, warehouses, and similar sites seeking instant energy savings and robust performance in large-scale deployments.

Q: What panel specifications help ensure sublime durability?

A: Key features such as the IP67-rated junction box, solid anodized aluminium alloy frame, toughened glass, and high-efficiency silicon cells together provide magnificent resistance to weather, snow loads, and voltage stress.

Q: How is the product packaged and delivered to maintain its market value?

A: Every solar panel is professionally packaged using durable materials to prevent transit damage. The secure packing preserves the panel's quality and market value, ensuring it reaches you in ideal condition.
